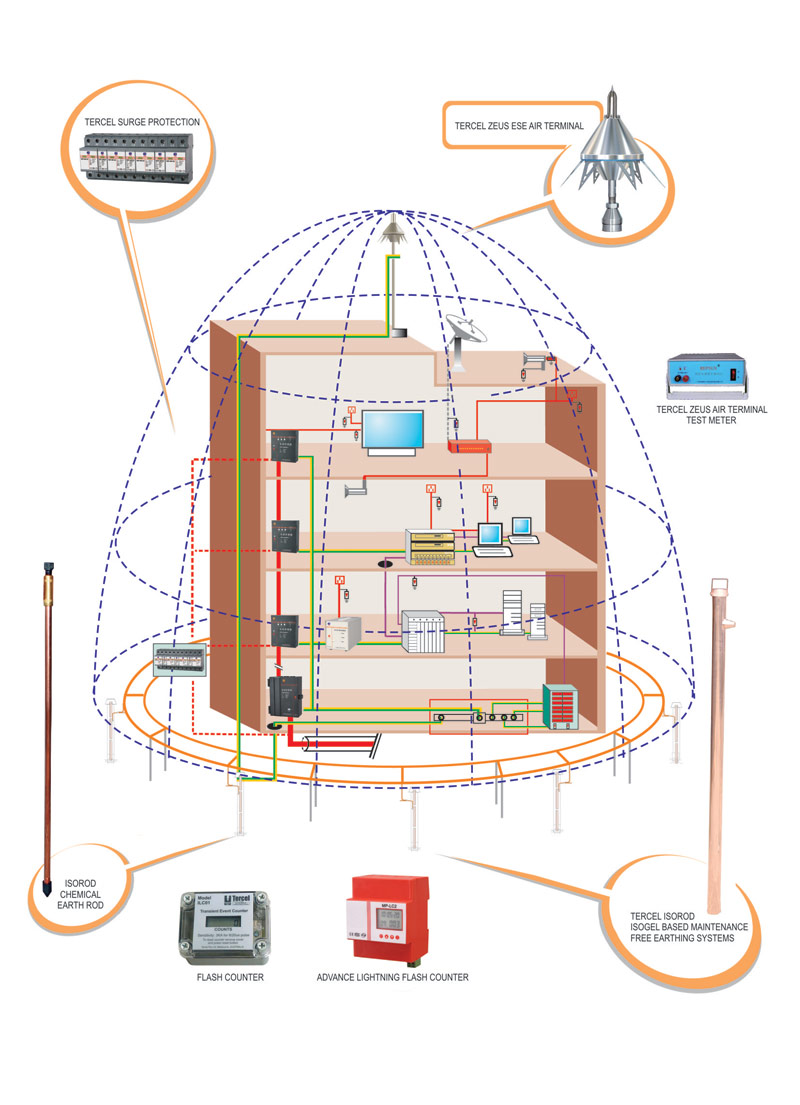

Our Products Range

1. Area Lightning Protection
click on images to zoom
TZ-20 TZ-40 TZ-50 TZ-63 TZ-90

Model Number TZ-20 TZ-40 TZ-50 TZ-63 TZ-90
Current Capacity ≥200 KA (10/350 μs)
Capacity Against Wind Speed ≥ 40 m/s
Dimension 40 cm 39 cm 37cm 39 cm 40 cm
Gain In Triggering Time (ΔT) 20 μs 40 μs 50 μs 63 μs 90 μs
Protection Radius calculate using the formaula given
Weight 3.5 kg 3.8 kg 3.5 kg 4.0kg 4.5 kg
ΔL 20m 40m 50m 63m 90m
Material Stainless Steel
Standard NFC17-102(1995)

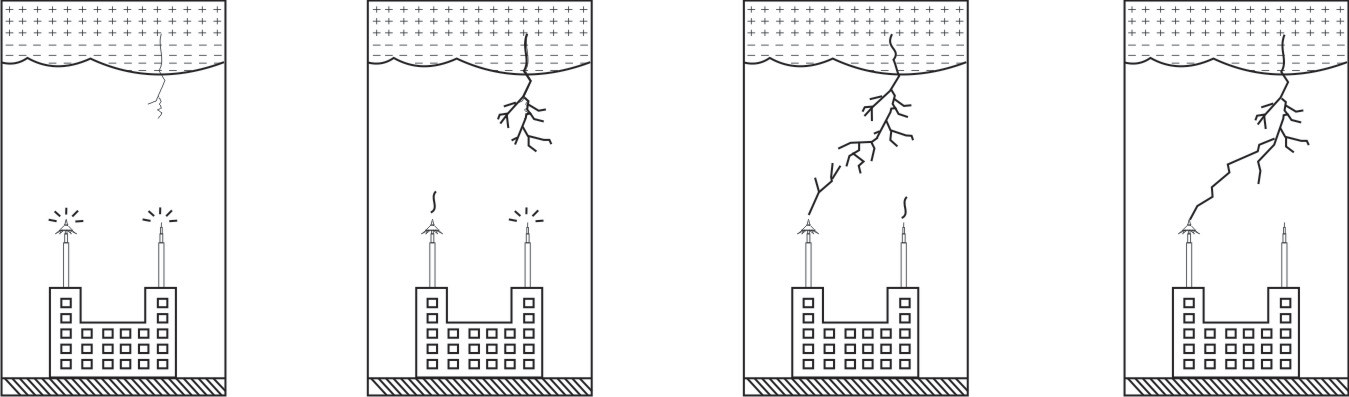

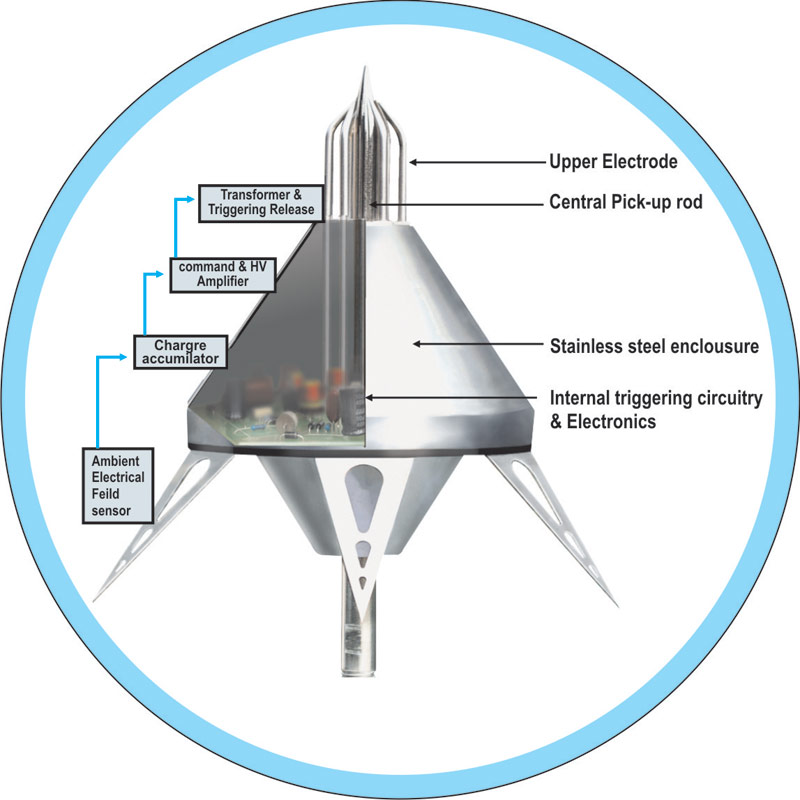

1a. How These Conductors Work

click on images to zoom

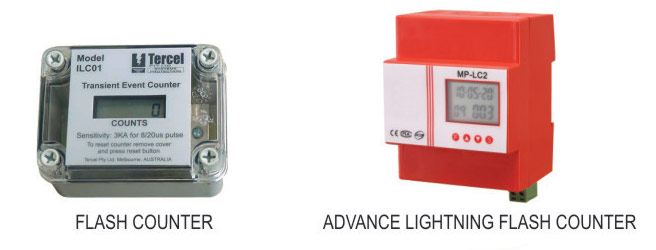

1b. Lightning Flash Counters

click on images to zoom

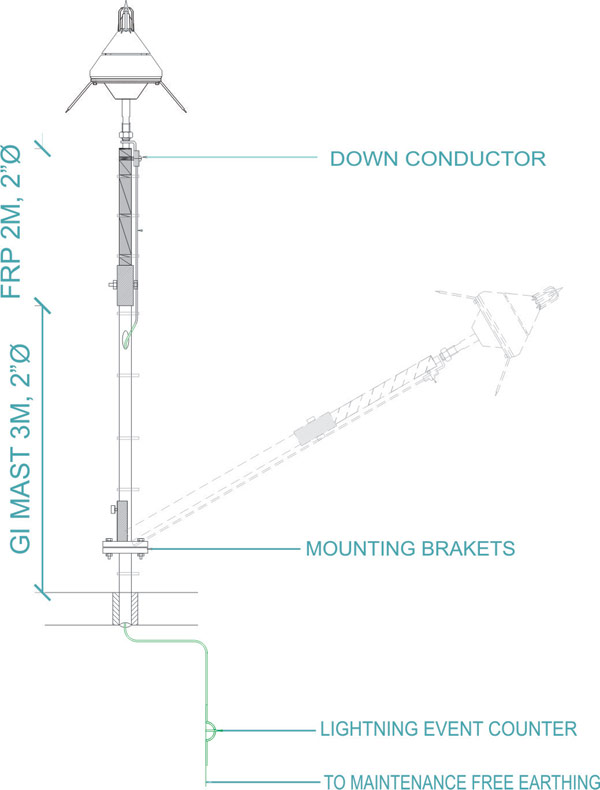

1c. Down Conductors

click on images to zoom

2. Surges and transient over voltage protection

  • Protection for Single Phase AC Circuits
  • Lightning Flash Counters
  • 3 Phase AC Circuits
  • Surge Protection for DC Power Supplies and Photovoltaic Cells
  • Communication Surge Protection for Telephone, Data and voice
  • RF And coaxial surge protection

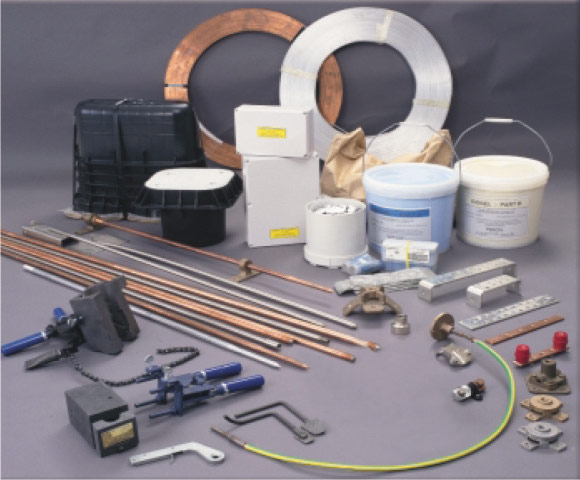

3. Earthing and Bonding systems

  • Isogel Earth enhancing Compound
  • Isorod Maintenance free earthing
  • Inspection pit
click on images to zoom


Featured Product

TZ-20

Current Cap. ≥200 KA (10/350 μs)
Δ T : 20 µs
Weight : 3.5 kg
Standard : NFC17-102(1995)
more products...


Download Product Catalogue
